Submersible chopper pump
Robust submersible CTS chopper pump for liquids containing up to 10% dry matter. Suitable for horizontal or vertical installation, with flow rates up to 324 m³/h and an IP68-rated motor.
Robust submersible pump for liquids containing solids
The submersible CTS chopper pump suits a wide range of applications and handles liquids with up to 10% dry matter. It can be installed horizontally or vertically.

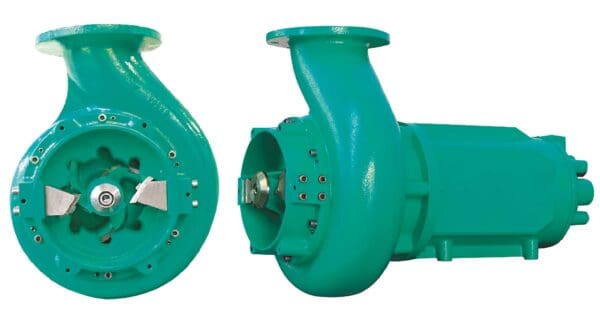

At the suction side, a rotating triangular element and fixed blades chop incoming material. Two continuously cooled and lubricated mechanical seals protect the electric motor against liquid ingress. The shaft is supported by robust bearings. The pump is rated IP68 with insulation class H.
Technical specifications
- Maximum flow: 324 m³/h
- Motor power: 2.2 to 45 kW
- Installation: horizontal or vertical
- Maximum dry-matter content: 10%
Wide range of applications
- filling tankers;
- feeding phase separators;
- transferring water to storage;
- processing wastewater from municipalities, campsites, farms, slaughterhouses, tanneries and paper mills.
