Pallet conveyor
Hydraulically driven pallet conveyor with welded steel pallets and a galvanised chassis. Transfers manure efficiently to the claw elevator and can be automated with an optional timer and frost-protection system.
Hydraulically driven manure transport

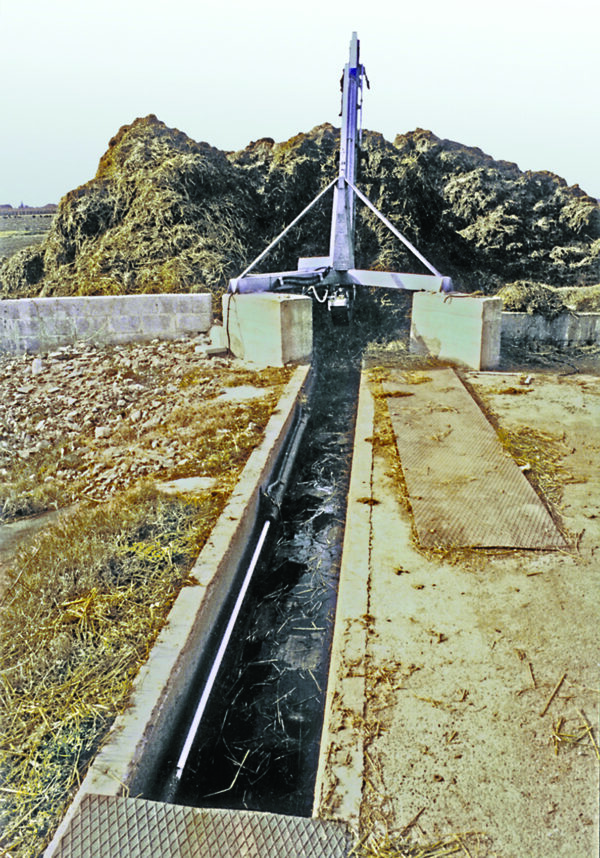

The reciprocating pallet conveyor combines with a claw elevator to complement manure scrapers efficiently. It receives manure from the building and transports it to the elevator, which raises and stacks the material for further processing or long-term storage.
At the end of the transport cycle, a comb gathers the manure into a pile. A hydraulic cylinder drives the reciprocating movement of the attached pallets.
Robust construction and automatic control
- bundled, welded steel pallets;
- galvanised chassis;
- pallets mounted on a shaft attached to the drive rod;
- hydraulic cylinder installed in the structure or mounted on a wall;
- IP55-rated hydraulic power unit with a 4 hp motor;
- control cabinet in an IP55 enclosure;
- optional automatic start, timer and frost protection.
