Rope/cable scraper
Lightweight CRD rope/cable scraper for manure passages up to 8 metres wide. The low-maintenance, programmable system cleans concrete and rubber flooring safely and efficiently, with very low operating costs.
Efficient cleaning with rope or cable

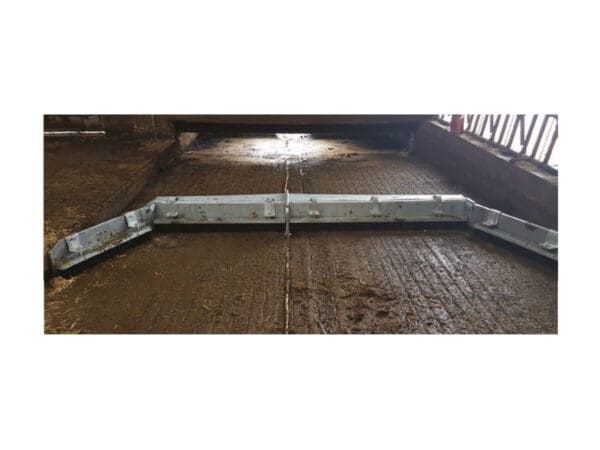

The CRD rope/cable scraper thoroughly cleans manure passages on concrete or rubber flooring without damaging the surface. Running the system several times a day, according to the season and conditions in the building, keeps floors cleaner and improves footing for the animals.
The scraper is fully galvanised, CE certified and 150 mm high.
Choice of rope or cable
- Patented rope: available in 10 or 12 mm diameter and repairable without knots. Maximum breaking load is 12.5 tonnes for Ø 10 mm and 16 tonnes for Ø 12 mm. Frayed fibres do not present an injury risk to the animals’ legs.
- Stainless-steel cable: 7×19 construction, available in 8 or 10 mm diameter. Maximum breaking load is 3.4 tonnes for Ø 8 mm and 5.3 tonnes for Ø 10 mm.
Reliable drive system
Two winches provide smooth, controlled movement: one winds in the rope or cable while the other pays it out.
